Carbon / Cast Steel Gate Valve 150lbs 300lbs 600lbs 800lbs 900lbs 1500lbs 2500lbs

Brand Name : OEM

Model Number : Z61H / Z60H / Z61Y / Z60 Y

Certification : API 6D / ANSI 16.5B ASME / ISO 9001 / GOST

Place of Origin : Shanghai, China

MOQ : 1pcs

Price : negotiation

Payment Terms : T/T advance or L/C at sight

Supply Ability : 90,000pcs per month

Delivery Time : 1usually within 35 days after received your payment

Packaging Details : Usually packing by plywood case suit for sea delivery

Product Name : Cast steel gate valve

Application : Oil, gas, water, steam etc.,

Size : 1/4" , 3/8" , 1/2" , 3/4" ,1" , 1-1/4" , 1-1/2" , 2"

Pressure : 600lbs , 800 lbs , 900 lbs , 1500lbs , 2500 lbs

standard : API 600 , API 6 D , ANSI , ASME

Temperature : -29~425 C

body : Cast steel / WCB / WC6 / stainless steel / carbon Steel

seat : Stainless steel / 2Cr13 / Stellite alloys

Contact Now

ANSI standard 150lbs 300lbs 600lbs 800lbs 900lbs 1500lbs 2500lbs Cast Steel Gate Valve

Brief introduction:

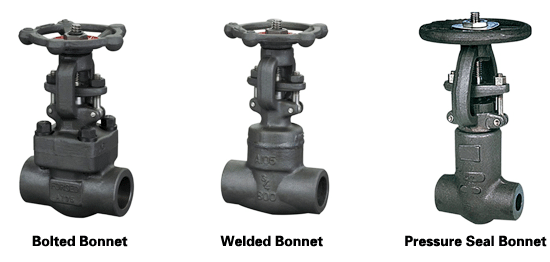

Forged steel gate valves are available in three bonnet designs. The first design is the Bolted, with male-female joint, spiral wound gasket, made in F304L/graphite.Ring joint gasket are also available on request. The second design is the welded bonnet, with a threaded and seal welded joint. On request a full penetration strength welded joint is available. The third design is the pressure seal bonnet, with a threaded and pressure seal bonnet joint.

Technical Specification

* Gate valves conform to API 602,and ASME B 16.34
* Each are tested according to API 598,and marking is per MSS SP-25

* Full Port or Conventional Port
* Outside Screw and Yoke(OS & Y)
* Two piece self-aligning packing gland
* Bolted bonnet with spiral wound gasket, threaded and seal welded bonnet or threaded and

pressure seal bonnet

* Integral backseat
* Socket weld ends to ASME B16.11
* Screwed Ends (NPT) to ANSI/ASME B1.20.1

Mail part & material

NO.	Part Name	CS to ASTM	AS to ASTM	SS to ASTM
NO.	Part Name	Type A105	Type F22	Type F304(L)	Type F316(L)
1	Body	A105	A182 F22	A182 F304(L)	A182 F316(L)
2	Seat Ring	A276 420	A276 304	A276 304(L)	A276 316(L)
3	Wedge	A276 430&410	A182 F304	A182 F304(L)	A182 F316(L)
4	Stem	A182 F6	A182 F304	A182 F304(L)	A182 F316(L)
5	Gasket	Corrugated SS+ graphite		SS+PTFE
6	Bonnet	A105	A182 F22	A182 F304(L)	A182 F316(L)
7	Bonnet Bolt	A193 B7	A193 B16	A193 B8	A193 B8M
8	Pin	A276 420		A182 F304
9	Gland	A276 410		A182 F304(L)	A182 F316(L)
10	Gland Eyebolt	A193 B7	A193 B16	A193 B8	A193 B8M
11	Gland Flange	A105	A182 f11	A182 F304(L)	A182 F316(L)
12	Gland Nut	A194 2H	A194 4	A194 8	A194 8M
13	Yoke Nut	A276 420
14	H.W.Lock Nut	A194 2H	A194 4	A194 8	A194 8M
15	Nameplate	SS
16	Hand wheel	A197
17	Lubricated Gasket	A473 431
18	Stem Packing	Flexible Graphite			PTFE
Suitable Medium		Water, oil, gas etc		Water, oil, gas etc	HNO3,CH3OOH etc
Suitable Temperature		-29℃～425℃		-29℃～550℃	-29℃～180℃

Main external and connection dimension

CLASS 800LB

NPS	CONV.	3/8"	1/2"	3/4"	1"	11/4"	11/2"	2"
NPS	Full		3/8"	1/2"	3/4"	1"	11/4"	11/2"	2"
L		79	79	92	111	120	120	140	178
H(OPEN)		158	158	169	197	236	246	283	330
W		100	100	100	125	160	160	180	200
Weight	Bolted	2.1	2.0	2.3	4.3	5.9	6.9	11.1	15.2
Weight	Welded	1.8	1.7	2.0	3.8	5.1	6.1	10.2	14.2

CLASS 900LB~ 1500LB

NPS	Conv.	3/8"	1/2"	3/4"	1"	11/4"	11/2"	2"
NPS	Full		3/8"	1/2"	3/4"	1"	11/4"	11/2"	2"
L		92	111	111	120	120	140	178	210
H(OPEN)		169	197	197	236	246	283	330	354
W		110	125	125	160	160	180	200	240
Weight	Bolted	2.5	4.3	4.2	6.6	8.8	12.5	17.2	23.5
Weight	Welded	2.4	4.2	4.0	6.3	8.7	12.1	17.2	22.0
